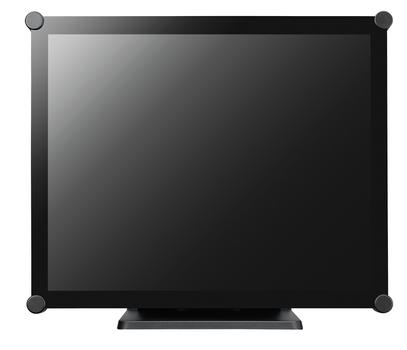

AG NEOVO TX192011E0100

TX-1902 19-Inch Touch Screen Monitor With Metal Casing

• XGA 1280 x 1024 resolution with 5:4 aspect ratio
• 10-point projected capacitive touch technology
• Versatile connectivity: VGA, HDMI, DisplayPort signal inputs
• Windows 10 ready – plug and play support for Windows 7/8/10
• Designed and developed for continuous 24/7 operation

• Panel
• Panel Type LED-Backlit TFT LCD (TN Technology)
• Panel Size 19.0"
• Max. Resolution SXGA 1280 x 1024
• Pixel Pitch 0.294 mm
• Brightness 250 cd/m²
• Contrast Ratio 1000:1
• Viewing Angle (H/V) 170°/160°
• Display Colour 16.7M
• Response Time 3 ms
• Surface Treatment Anti-Glare Treatment (Haze 25%), 3H Hard Coating
• Frequency
• Frequency (H) 31 kHz-80 kHz
• Frequency (V) 50 Hz-75 Hz
• Signal Input
• DisplayPort x 1
• HDMI 1.4 X 1
• VGA 15-Pin D-Sub x 1
• External Control
• RJ11 Yes
• Touch Screen
• Technology Projective Capacitive
• Positional Accuracy ± 2.0 mm
• Panel Interface USB (Type-B)
• Multi-touch Plug & Play
• Single Touch Support by Driver
• 10-point touch Windows® 7、8、10
• Windows VISTA/XP/2000/CE/XP Embedded、Mac OS 10.10-10.14
• Multi-touch Support by Driver 10-point touch for Linux、Android 2.3-4.x
• Power
• Power Requirements DC 12V, 2.5A
• On Mode 12W (On)
• Standby Mode < 0.8W
• Off Mode < 0.3W
• Power Supply External
• Glass
• Thickness 3.1 mm (0.12")
• Transmission Rate > 85%
• Hardness > 7H
• Operating Conditions
• Temperature 0°C-40°C (32°F-104°F)
• Humidity 20%-80% (non-condensing)
• Storage Conditions
• Temperature -20°C-60°C (-4°F-140°F)
• Humidity 10%-90% (non-condensing)
• Mounting
• VESA FPMPMI Yes (100 x 100 mm)
• Stand
• Tilt -5° to 90°
• Security
• Kensington Security Slot Yes
• Dimensions
• Product with Base (W x H x D) 427.0 x 374.6 x 214.2 mm (16.8" x 14.7" x 8.4")
• Product w/o Base (W x H x D) 427.0 x 355.0 x 48.8 mm (16.8" x 14.0" x 1.9")
• Packaging (W x H x D) 500.0 x 460.0 x 300.0 mm (19.7" x 18.1" x 11.8")
• Weight
• Product w/o Base 4.5 kg (9.9 lb)
• Product with Base 6.5 kg (14.3 lb)
• Packaging 8.3 kg (18.7 lb)
• Regulation Approval
• Certifications & Compliance CE, LVD, WEEE, RoHS, REACH, EAC
• Power Adaptor Certifications SOY/SOY-1200500-327: CE, cUL/UL, PSE, RCM, WEEE, KCC, BSMI
• Delta /ADP-50YH BM: CE, cUL/UL, PSE, RCM, WEEE, KCC, BSMI
• Accessories
• Supplied Power Adaptor, Power Cord, VGA Cable, HDMI Cable, USB Cable, Quick Start Guide, Warranty Card
• Optional Accessories
• Wall Mount (Landscape only) WMK-01, WMK-03, PMK-01
