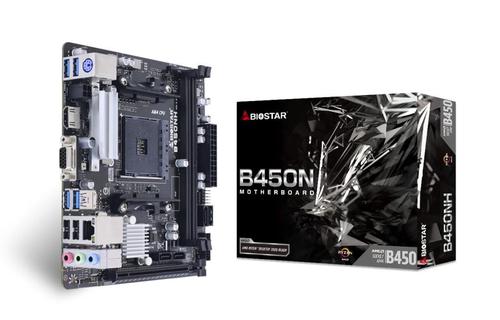

BIOSTAR Motherboard Amd B450 Socket
|
|
BIOSTAR Motherboard Amd B450 Socket
-
Processor-socket
Stik AM4
-
Chipset
AMD B450
-
M.2 Slot
1
-
Hukommelses slots
2 x DIMM, DDR4
-
Maksimal RAM-frekvens
4GHz
-
Max hukommelse understøttet
64GB
-
Form Factor
mini ITX
|
B450NH
Features:
- Supports AMD Ryzen CPU / APU
- AMD B450 single chip architecture
- Supports 2-DIMM DDR4-1866/2133/2400/2667/2933(OC)/3200(OC)/3600(OC)/4000(OC) up to 64G maximum capacity
- Realtek Gigabit LAN
- Supports USB 3.2 Gen1
- Supports PCIe M.2
- Supports HDMI 4K resolution
Specifications:
| Chipset |
AMD B450 |
| CPU SUPPORT |
Supports AMD AM4 Socket for 3rd, 2nd and 1st Gen Ryzen/2nd and 1st Gen Ryzen with Radeon Vega
Graphics/Athlon with Radeon Vega Graphics Processors
|
| MEMORY |
Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2667
Supports Dual Channel DDR4 2933(OC)/ 3200(OC)/ 3600(OC)/ 4000(OC)
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module
|
| INTEGRATED VIDEO |
By CPU model
Supports DX12
Supports HDCP
|
| STORAGE |
4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10
1 x M.2 (M Key) Socket:
Supports M.2 Type 2260/ 2280 SSD module
Supports PCIe 3.0 x 4 (32Gb/s) - NVMe/ AHCI SSD
Supports SATA III (6.0Gb/s) SSD
|
| LAN |
Realtek RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
|
| AUDIO CODEC |
ALC887
7.1 Channels, High Definition Audio
|
| USB |
6 x USB 3.2 (Gen1) ports (4 on rear I/Os and 2 via internal header)
4 x USB 2.0 ports (2 on rear I/Os and 2 via internal header)
|
| EXPANSION SLOT |
1x PCIe 3.0 x 16 Slot:
Supports PCIe 3.0 x 16 mode with AMD Ryzen™ processors.
Supports PCIe 3.0 x 8 mode with AMD Ryzen™ with Radeon Vega Graphics processors.
|
| REAR I/O |
1 x PS/2 Mouse/ Keyboard Port
1 x HDMI Port
1 x VGA Port
1 x LAN port
4 x USB 3.2 (Gen1) Ports
2 x USB 2.0 Ports
3 x Audio Jack
|
| INTERNAL I/O |
4 x SATA III 6.0Gb/s Connectors
1 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 4-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Clear CMOS Header
1 x Internal Stereo Speaker Header
1 x COM Port Header
1 x S/PDIF out Connector
|
| H/W MONITORING |
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring
|
| DIMENSION |
Mini ITX Form Factor Dimension: 17cm x 17cm ( W x L )
|
| OS SUPPORT |
Supports Windows 7(64it)/ 10(64bit) / 11(64bit)
|
| BUNDLE SOFTWARE |
BullGuard
|
| ACCESSORIES |
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
|
| FEATURES |
BIO-FLASHER
PCIe M.2 32Gb/s
|
