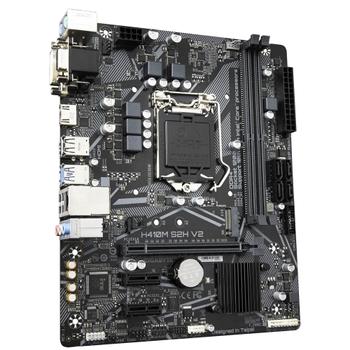

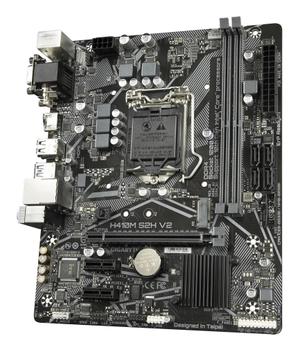

GIGABYTE Motherboard Intel H410 Lga

H410M S2H V2 (rev. 1.0)

• Supports 10th Gen Intel® Core™ Processors
• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
• 8-Channel HD Audio with High Quality Audio Capacitors
• Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface
• Intel® GbE LAN with cFosSpeed Internet Accelerator Software
• HDMI /DVI-D/D-Sub Ports for Multiple Display
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
• GIGABYTE APP Center, Simple and Easy Use
• Anti-Sulfur Resistors Design

• Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
• L3 cache varies with CPU

• Intel® H470 Express Chipset

• Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules
• Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules
• 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

• Integrated Graphics Processor-Intel® HD Graphics support:
  • 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  • 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

• Intel® GbE LAN chip (1000/100 Mbit)

• 1 x PCI Express x16 slot, running at x16
• 2 x PCI Express x1 slot

• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
• 4 x SATA 6Gb/s connectors

• Chipset:
  • 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 4 x SATA 6Gb/s connectors
• 1 x CPU fan header
• 1 x system fan header
• 1 x RGB LED strip header
• 1 x front panel header
• 1 x front panel audio header
• 1 x speaker header
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x serial port header
• 1 x Clear CMOS jumper

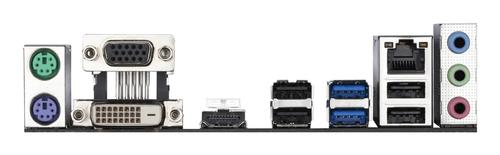

• 1 x PS/2 keyboard port
• 1 x PS/2 mouse port
• 1 x D-Sub port
• 1 x DVI-D port
• 1 x HDMI port
• 2 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks

• iTE® I/O Controller Chip

• Voltage detection
• Temperature detection
• Fan speed detection
• Overheating warning
• Fan fail warning
• Fan speed control

• 1 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Support for APP Center
  • @BIOS
  • Ambient LED
  • EasyTune
  • Fast Boot
  • Game Boost
  • ON/OFF Charge
  • Smart Backup
  • System Information Viewer
• Support for Q-Flash
• Support for Xpress Install

• Norton® Internet Security (OEM version)
• Realtek® 8118 Gaming LAN Bandwidth Control Utility

• Support for Windows 10 64-bit

• Micro ATX Form Factor; 22.6cm x 18.5cm
