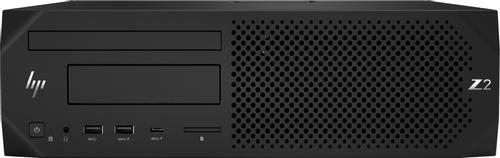

HP Z2G4S I78700K 16GB/512 W10P DVD/RW SYST

HP Z2 Small Form Factor G4 Workstation

System features

Operating system

Windows 10 Pro 64

Processor family:

• 8th Generation Intel® Core™ i7 processor

Processor:

• Intel® Core™ i7 8700 with Intel® UHD Graphics 630 (3.2 GHz base frequency, up to 4.6 GHz with Intel® Turbo Boost Technology, 12 MB cache, 6 cores)

Number of processors:

1

Chipset:

Intel® C246

Environmental:

• Low halogen

Memory

Memory, standard

• 16 GB DDR4-2666 non-ECC SDRAM (2 X 8 GB)

(Transfer rates up to 2666 MT/s.)

Memory Slots:

4 DIMM

Storage

Internal drive bays:

One 2.5"; One 3.5"; Two M.2 NVME 2280 SSD

External drive bays:

One 3.5" HDD

Internal drive

512 GB HP Z Turbo Drive PCIe® SSD

Additional storage

HP 3-in-1 Media Card Reader

Storage controller:

Integrated SATA (4 ports 6 Gb/s) with integrated RAID 0, 1, for PCIe SSDs supported. Requires identical hard drives (speeds, capacity, interface).

Optical drive

• HP Slim DVD-Writer

Display and graphics

Graphics

Integrated:
Intel® UHD Graphics 630
Discrete:
NVIDIA® Quadro® P1000 (4 GB GDDR5 dedicated)

Compatible displays:

• All HP Z Displays and HP DreamColor Displays are supported.

Expansion features

Ports

Front:
1 headphone/microphone combo
1 USB 2.0 (charging)
2 USB 3.0
1 USB 3.1 Gen 2 Type-C™ (charging) ⁹

Back:
1 audio-in
1 audio-out
1 DVI-I single link
1 RJ-45
2 DisplayPort™ 1.2
2 USB 2.0
4 USB 3.0 ¹⁴

Rear:
1 USB 3.0
2 USB 2.0

Optional:
Flex I/O

(1 USB 3.0 and 2 USB 2.0 ports available as 2 separate 2 x 10 (3.0 x 1, 2.0 x 1) and 2 x 5 (2.0 x 2) header. Supports one HP Internal USB 2.0 Port Kit and one USB 3.0 media card reader.)

Slots

• 2 M.2 PCIe 3 x4
• 1 PCIe Gen 3 x16
• 2 PCIe 3 x1 (x4 open ended connector)
• 2 PCIe 3 x4 (x16 connector)

Communications

Network interface

LANIntegrated Intel® I219-LM PCIe® GbE

Audio:

Conexant CX20632-31Z, 1.5W internal mono speaker

Power and operating requirements

Power:

• 310 W external power adapter, up to 92% efficiency, active PFC

Dimensions and weight

Dimensions (W x D x H)

33.8 x 38.1 x 10 cm
(Standard desktop orientation.)

Weight

Starting at 5.7 kg
(Exact weight depends on configuration.)

What's included

Software:

• Buy Office
• CyberLink Power2Go
• CyberLink PowerDVD
• HP Client Security Software
• HP PC Hardware Diagnostics UEFI
• HP Performance Advisor
• HP Remote Graphics Software (RGS) 7.1
• PDF Complete - Corporate Edition
• HP Sure Recover
• HP Manageability Integration Kit Gen2

Keyboard:

HP USB Business Slim Keyboard

Pointing device:

• HP USB Optical Mouse

Security management:

• HP Business PC Security Lock Kit
• HP Keyed Cable Lock Kit
• HP Solenoid Hood Lock and Sensor
• HP UltraSlim Cable Lock Kit
• HP Client Security Suite Gen 4
• HP Sure Start Gen 4
• HP Sure Run
• HP Sure Click
• HP BIOSphere Gen4

Warranty:

• 3 year (3-3-3) limited warranty and service offering includes 3 years of parts, labor and on-site repair.
