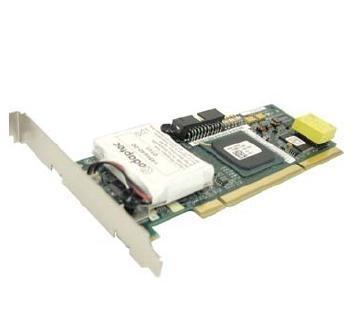

IBM ServeRAID 6i+ U320 RAID PCI-X 128MB
|
|
IBM ServeRAID 6i+ U320 RAID PCI-X 128MB
-
Porte/kontakter
SCSI
-
Eksterne porte
Nej
-
Tilslutning
PCI-X
-
Interne porte
Nej
-
RAID
Ja
|
Beskrivelse
Specifikationer
39R8793 IBM ServeRAID 6i+ Integrated RAID Controller
| Feature |
SR-5i |
SR-6M |
SR-6M |
SR-6i |
SR-6i+ |
SR 7t |
SR 7e |
SR 7k |
| SCSI or SATA or SAS |
SCSI |
SCSI |
SCSI |
SCSI |
SCSI |
SATA |
SCSI, SATA |
SCSI |
| First available |
2002 |
2003 |
2003 |
2003 |
2004 |
2004 |
2004 |
2004 |
| US Announcement Letter |
102-170 |
103-206 |
103-206 |
103-210 |
104-078 |
104-075 |
|
104-284 |
| Marketing part number |
25P3492 |
32P0033
39R8815 |
02R0988
39R8816 |
71P8595 |
13N2190
39R8793 |
71P8648
39R8805 |
None |
71P8642
39R8800 |
| FRU part number (adapter only) |
32P0016 |
02R0985
39R8817 |
02R0998
39R8818 |
71P8627 |
Adaptec 2108800
39R8795 |
Adaptec 2410SA
39R8807 |
Not applicable (software) |
90P5245
ATB-100
39R8801 |
| Processor |
|
Intel IOP321 600MHz |
Intel IOP321 600MHz |
|
Intel IOP321 400MHz |
80302 |
Not applicable |
Intel IOP332 |
| Useful links |
Guide
Drivers |
Drivers |
Drivers |
Drivers |
Drivers |
Drivers |
Drivers |
Drivers |
| Internal connectors |
0 |
2 |
2 |
0 |
0 |
4 |
0 |
0 |
| External connectors (std/max) |
0 |
2/2 |
2/2 |
0 |
0 |
0 |
0 |
0 |
| Cable for extra external connector |
None |
None |
None |
None |
None |
None |
None |
None |
| External connector type |
None |
VHDCI |
VHDCI |
None |
None |
None |
None |
None |
| Cache |
128 MB |
128 MB |
256 MB |
128 MB |
128 MB |
64 MB |
None |
256 MB |
| Battery backup for cache |
Yes |
Yes |
Yes |
Yes |
Yes |
No |
No |
Yes |
| SCSI channels / SATA ports / SAS ports |
1 on server |
2 |
2 |
1 or 2 on server |
1 or 2 on server |
4 |
1 or 2 |
2 on server |
| Disks per channel (SCSI) or port (SATA/SAS) |
14 |
14 |
14 |
14 |
14 |
1 |
Varies |
14 |
| SCSI level |
Ultra320 |
Ultra320 |
Ultra320 |
Ultra320 |
Ultra320 |
SATA |
Ultra320 |
Ultra320 |
| PCI or PCI-X or PCI Express |
PCI |
PCI-X |
PCI-X |
PCI-X |
PCI-X |
PCI |
PCI-X |
PCI-X 1.0 |
| PCI bus speed |
66 MHz |
133 MHz |
133 MHz |
133 MHz |
133 MHz |
66 MHz |
Varies |
100 MHz |
| PCI bus width |
64-bit |
64-bit |
64-bit |
64-bit |
64-bit |
64-bit |
64-bit |
64-bit |
| PCI bus voltage |
3.3 or 5V |
3.3V |
3.3V |
3.3V |
3.3V |
3.3V or 5V |
Not applicable |
Not applicable |
| Autosync |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| "Optimal" SCSI speed setting |
Yes |
Yes |
Yes |
Yes |
Yes |
Not applicable |
Yes |
Yes |
| LVDS support |
Yes |
Yes |
Yes |
Yes |
Yes |
Not applicable |
Yes |
Yes |
| I2O enabled |
Yes |
Yes |
Yes |
Yes |
Yes |
No |
Not applicable |
Yes |
| Active PCI support (hot-swap) |
No |
No |
No |
No |
No |
No |
No |
No |
| Clustering support |
No |
Yes |
Yes |
No |
No |
No |
No |
No |
| Usable in a fault-tolerant pair |
No |
Yes |
Yes |
No |
No |
No |
No |
No |
| Data scrubbing |
Yes |
Yes |
Yes |
Yes |
Yes |
No |
No |
Yes |
| Flashcopy |
No |
Yes |
Yes |
Yes |
Yes |
Yes |
No |
Yes |
| Copyback |
No |
No |
Yes |
Yes |
Yes |
No |
No |
Yes |
| Maximum stripe size |
64 KB |
64 KB |
64 KB |
64 KB |
64 KB |
64 KB |
64 KB |
64 KB |
| RAID-0 and RAID-1 support |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| RAID-5 support |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
No |
Yes |
| RAID-1E support |
Yes |
Yes |
Yes |
Yes |
Yes |
No |
No |
Yes |
| RAID-5E support |
No |
No |
No |
No |
No |
No |
No |
No |
| RAID-5EE support (replaces 5E) |
No |
Yes |
Yes |
Yes |
Yes |
No |
No |
Yes |
| RAID-6 |
No |
No |
No |
No |
No |
No |
No |
No |
| RAID-00 support |
No |
Yes |
Yes |
Yes |
Yes |
No |
No |
Yes |
| RAID-10 support |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
No |
Yes |
| RAID-1E0 support |
No |
Yes |
Yes |
Yes |
Yes |
No |
No |
Yes |
| RAID-50 support |
Yes |
Yes |
Yes |
Yes |
Yes |
No |
No |
Yes |
| RAID-60 support |
No |
No |
No |
No |
No |
No |
No |
No |
| Feature |
SR-5i |
SR-6M |
SR-6M |
SR-6i |
SR-6i+ |
SR 7t |
SR 7e |
SR 7k |
| Formfaktor | Plug-in |
| Dataoverførselshastighed | 320 Gbit/sek. |
| Intern cache | 128 MB |
| PCI-bus | 64-bit PCI-X 133MHz |
| RAID-controller type | 0, 1, 5, 1E, 00, 10, 50, 1E0, 5EE |
| Controller grænseflade type | Ultra320 SCSI |
| Grænseflade type | PCI-X |
