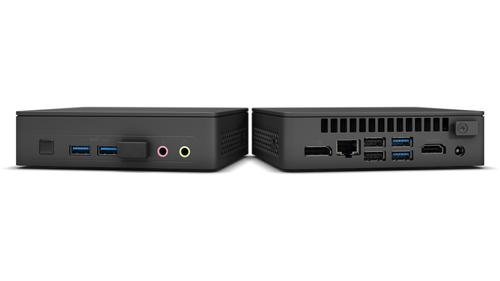

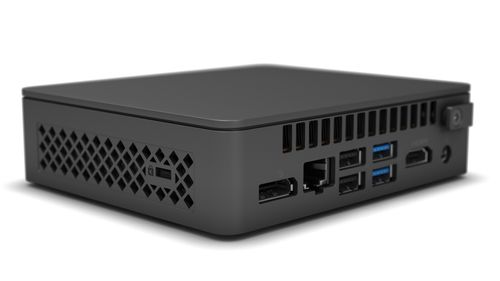

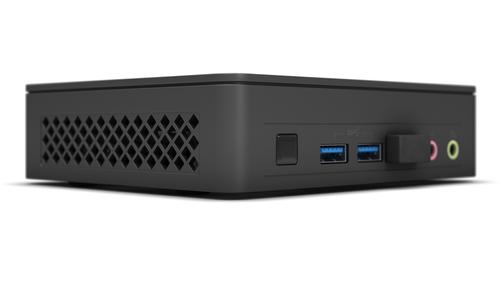

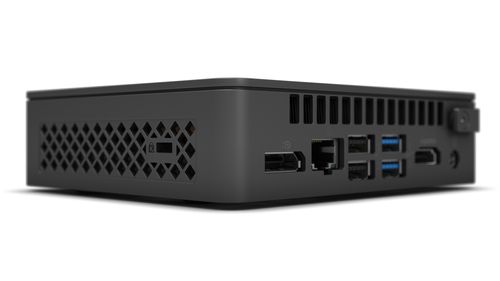

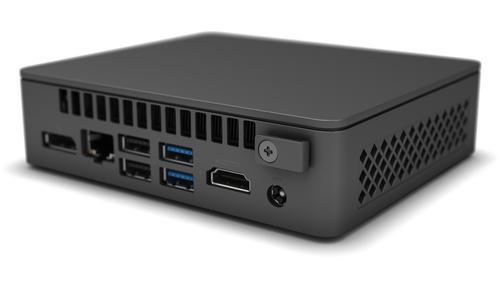

INTEL Nuc 11 Essential Ucff Black

Intel® NUC 11 Essential Mini PCs, Kits, and Boards

• Slim form-factor Mini PCs and Kits (135x115x36 mm, 0.56 liters)
• Intel® Pentium® Silver or Celeron® processors
• Intel® UHD graphics support up to two 4K displays at 60Hz
• Up to 32GB dual-channel DDR4-2933 SODIMMs
• Optional 64GB eMMC storage
• M.2 slot for PCIe x2 NVMe and SATA SSDs
• HDMI 2.0b and DisplayPort 1.4 ports support HDCP 2.2
• 10/100/1000 Mbps Ethernet
• External 9-pin Front Panel Header
• 2x front USB 3.2 Gen 1, 2x rear USB 3.2 Gen 2, and 2 rear USB 2.0

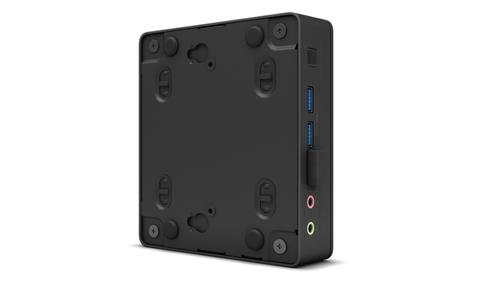

• Multiple built-in mounting options

• Product Collection : Intel® NUC Kit with Intel® Celeron® Processors
• Code Name : Products formerly Atlas Canyon
• Supported Operating Systems : Windows 11*, Windows 10*, Linux*
• Board Number : NUC11ATBC4
• Socket : Soldered-down BGA
• Internal Drive Form Factor : M.2 SSD
• # of Internal Drives Supported : 1
• Lithography : 10 nm
• TDP : 15 W
• DC Input Voltage Supported : 19VDC
• Processor Included : Intel® Celeron® Processor N5105 (4M Cache, up to 2.90 GHz)
• Intel vPro® Platform Eligibility : No
• Total Cores : 4
• Total Threads : 4
• Processor Base Frequency : 2.00 GHz
• Warranty Period : 3 yrs

• Included Storage : Optional 64GB eMMC
• Max Memory Size (dependent on memory type) :
• 32 GB
• Memory Types : DDR4-2933 1.2V SO-DIMM
• Max # of Memory Channels : 2
• Max # of DIMMs : 2
• ECC Memory Supported : No

• Integrated Graphics : Yes
• Graphics Output : DP++/HDMI
• # of Displays Supported : 2

• PCI Express Revision : Gen 3
• M.2 Card Slot (wireless) : 1
• M.2 Card Slot (storage) : 1

• # of USB Ports : 6
• USB Configuration : 2x front USB 3.2 Gen 1 and 2x rear USB 3.2 Gen 2; 2x USB 2.0
• USB Revision : 3.2 Gen 2 / 3.2 Gen 1 / 2.0
• Audio (back channel + front channel) : 1x 3.5mm stereo out jack, 1x 3.5mm microphone jack
• Integrated LAN : 10/100/1000
• Integrated Wireless : Intel® Wireless-AC 9462 + Bluetooth 5.0
• Integrated Bluetooth : Yes

• Chassis Dimensions : 135x115x36mm

• Intel vPro® Platform Eligibility : No
• Intel® HD Audio Technology : Yes
• Intel® Platform Trust Technology (Intel® PTT) : Yes

• Intel® AES New Instructions : Yes
