M Wallmount Pro MBSTH1UP 200x600 Fixed Black

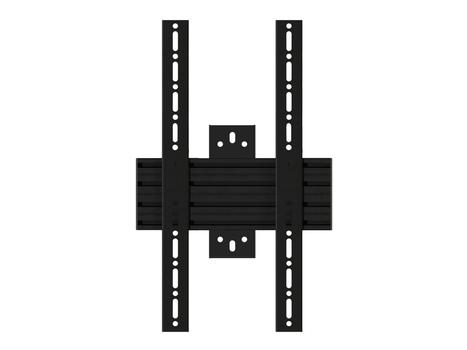

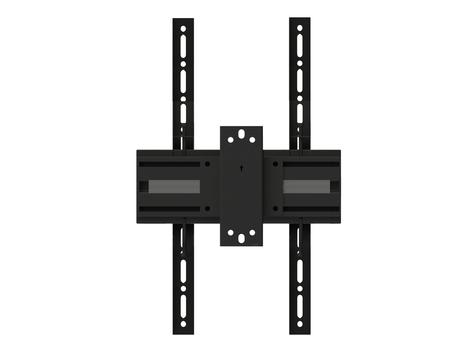

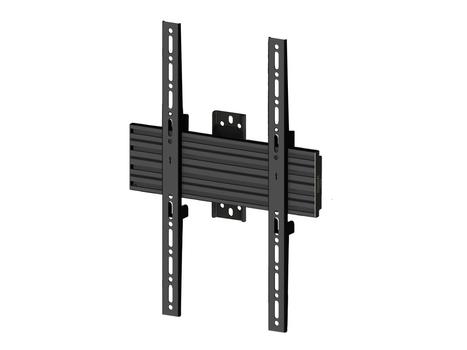

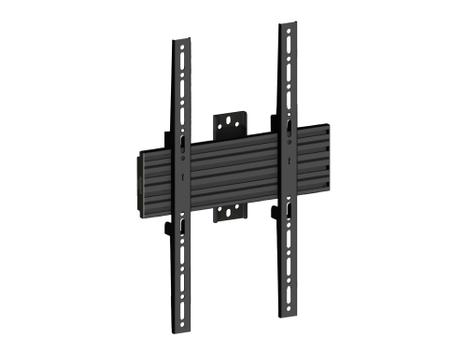

Multibrackets Pro Series M Wallmount Pro MBSTH1UP is our innovative - ready to be installed Single-Display Wallmount.
This mount is suited for Ultra-Stretch Digital Signage screens like LG 86BH5C when portrait mounted.
The new professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range with close to unlimited flexibility. This model the M Wallmount Pro MBSTH1UP is no exception. The product provides the versatility and flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and creating an esthetic result worth the public eye.
With its modular construction installers have vast possibilities to change, create, update and reconfigure its design if ideas change over time, then Pro Series can follow.
Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount is truly versatile and is made of the highest quality materials.
The Pro Series possibilities to extend aluminum rail change brackets and add details by individual choice is vast so that one can tailor each mount to its location and function.
The Pro Series includes hardware so that a basic installation should not be a hassle.
Multibrackets Pro Series Public Wallmounts is ideal for any large screen digital signage wallmount application such as videowalls, menuboards and more.
Highlights
- A flexible system product ideal for video walls and menuboards
- Includes VESA adapters for compatibility up to VESA 200x600
- Module based aluminum rails creates desirable length without cutting
- Integrated cable management throughout the entire solution
- Power click install for an easy, fast and safe installation
- Dual wallplates included
- Portrait or landscape position of screen possible
- Hardware kit included
Selected models are TÜV approved.
MB Pro Series is design protected by Multibrackets
Pictures used with courtesy of LG Corp
| Specification |
| Wallmount Pro MBSTH1UP 200x600 Fixed Black |
| Article No: | 7 350 073 734 313 |
| For screen size: | 40”-100" |
| Type: | Single Side MBSTH1UP |
| Universal & VESA standard: | Adjustable from 100x100 to 200x600 max |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 6.2 kg |
| Measurements | 68x63x7.5 cm |
| Max Load: | 30 kg per screen |
| Tilt: | No |
| Swivel: | No |
| Rotate: | No |
| Cable Management: | Yes |
| Options: | M Pro Series Parts |
| Certifications: | CE |
| Warranty: | 5 years |
| Antal understøttede skærme | 1 |
| Maksimal vægtkapacitet | 30 kg |
| Minimal skærmstørrelse kompatibilitet | 101,6 cm (40") |
| Maksimal skærmstørrelse kompatibilitet | 2,54 m (100") |
| Monteringstype | Væg |
| Montering interface kompatibilitet (min.) | 100 x 100 mm |
| Montering interface kompatibilitet (maks.) | 200 x 600 mm |
| Panel montering grænseflade | 100 x 100 mm |
| Forbedret kabelstyring | Ja |
| Produktfarve | Sort |
| Husmateriale | Aluminium, Stål |
| Kompatible produkter | LG 86BH5C |
| Certificering | CE |
| Bredde | 630 mm |
| Dybde (maks.) | 7,5 cm |
| Højde | 680 mm |
| Vægt | 3,07 kg |
| Aluminium content weight | 0 g |
| Steel content weight | 3,07 kg |
| Other metals content weight | 0 g |
| Pakkebredde | 165 mm |
| Pakkedybde | 660 mm |
| Pakkehøjde | 85 mm |
| Pakkevægt | 3,4 kg |
| Pakketype | Kasse |
| Monteringssæt | Ja |
| Paper/cardboard packaging weight | 300 g |
| 3 | 0 g |
| Vægt af plastemballage | 30 g |
| Forsendelseskasses kassens bredde (indvendig) | 16,5 cm |
| Forsendelseskassens længde (indvendig) | 66 cm |
| Forsendelseskassens højde (indvendig) | 8,5 cm |
| Forsendelseskassens bruttovægt (indvendig) | 8,83 kg |
| Produkter pr. forsendelseskasse (indvendig) | 1 stk |
