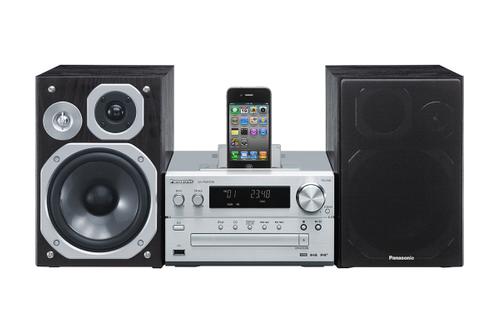

PANASONIC SC-PMX5 Micro system w/ Apple
|
|
PANASONIC SC-PMX5 Micro system w/ Apple
|
Beskrivelse
Specifikationer
Ekspertanmeldelser
High-End Micro HiFi System SC-PMX5
Full Digital Amplifier System
The Full Digital Amplifier System handles all signal processing up to the point of speaker output in digital form. This produces clear sound with minimal distortion. A high-efficiency power circuit also provides a stable power supply and low power consumption. And the main unit is conveniently compact.
Digital Music Connection for iPod/iPhone
Digital music connection of an iPod or iPhone also allows the SC-PMX5 to process music signals in their original digital form. This eliminates sound degradation caused by digital/analogue conversion and during transmission. Allowing the users to enjoy their favourite iPod tunes with pure sound that is highly faithful to the original.
High Grade Aluminium Front Panel Design
Aluminium is used for the front panel and volume knob of the main unit. A hairline finish emphasises the solid presence of the main unit, adding a luxurious touch to the listening area.
3-Way Speaker System
The 3-Way Speaker System comprises three speaker units: a super tweeter, tweeter, and woofer. The audio signal is divided into acoustic ranges extending from bass to treble, allowing each of the speaker units to produce rich, clear sound. The use of a newly improved diaphragm in the tweeter results in even clearer treble sounds.
14cm Bamboo Charcoal PP Woofer
Bamboo charcoal has precise holes inside. By adding this material, PP cone gets lighter and resonance is reduced. Sound becomes more clear and natural.
Anti-Distortion Structure Speaker Cone
The Anti-Distortion Speaker features an uneven thickness for the rear surface of the speaker cone. This uneven thickness serves to suppress resonance, to produce clear sound with minimal noise.
Screw Type Speaker Terminals
The SC-PMX5 uses screw type speaker terminals. These large speaker terminals increase the retention strength to transmit signals more reliably and further improve treble sounds. They also let you replace cables with commercially available types if desired, to create exactly the sound you want.
Specifications:
| Playable Discs
Hide |
| CD, CD-R/-RW |
CD-DA, MP3 |
| Audio System
Hide |
| Output Channel |
2ch |
| Power Output (RMS) |
120W (1kHz, 3ohms, 10% THD) |
| USB Slot
Hide |
| Slot |
Yes |
| MP3 Playback |
Yes |
| The media recording from |
- |
| Recording Speed |
- |
| Built-in Memory
Hide |
| Capacity |
- |
| Recordable & Playable Type |
- |
| The media recording from |
- |
| High Quality Sound
Hide |
| D.Bass with Smart Control |
Yes |
| Maximized Bass Sound PLUS |
- |
| Re-Master (for Digital ) |
- |
| Bi-Amplifier |
- |
| Preset EQ |
4 (Heavy, Clear, Soft, Vocal) + Flat |
| Surround |
Yes |
| Pure Direct Sound System |
- |
| Digital Music Connection for iPod/iPhone |
Yes |
| Bass & Treble Control |
Y (Knob on main unit) |
| Direct-Vocal Surround |
- |
| Full Digital Amplifier System |
Yes |
| Nanosized Bamboo Cone Speaker |
- |
| Dual Passive Radiator |
- |
| Aero Stream Port |
- |
| Bamboo Carcoal PP Cone |
Y (Woofer) |
| Anti-Jitter Digital Amplifier |
Yes |
| High-Force Magnet |
- |
| Easy to Use
Hide |
| Karaoke Function |
- |
| Display |
Fluorescent |
| Motorized Power Sliding Door |
- |
| Wall-Mountable |
- |
| Networking
Hide |
| Wireless Audio with AirPlay |
- |
| Remote Control App for iPhone |
- |
| iPod/iPhone Connection |
Y (Integrated ) |
| Bluetooth |
- |
| Internet Radio Control |
- |
| Speaker System
Hide |
| Front Configuration |
3 way 3 speaker system,Bass-reflex |
| Front Speaker Unit [Approx.] |
Woofer: 14 cm Cone Type Tweeter: 1.9 cm Soft Dome Type Super Tweeter: 1.5 cm Piezo Type |
| Terminal
Hide |
| Analogue Audio In RCA |
Y (AUX) |
| Analogue Audio In 3.5mm |
- |
| Headphone Out |
Yes |
| Tuner
Hide |
| Station Presets |
30-FM / 20-DAB |
| Auto Tuning |
Yes |
| Others
Hide |
| Power Supply |
AC 220-240V, 50Hz |
| Power Consumption
Hide |
| Main Unit (Normal Use) |
40W |
| Main Unit (Standby) |
0.4W |
| Dimensions, Weights
Hide |
| Main Unit Dimensions (W x H x D) |
210 x 120 x 266 mm |
| Main Unit Weight |
3 kg |
| Front Speaker Dimensions (W x H x D) |
161 x 238 x 262 mm |
| Front Speaker Weight |
2.6 kg |
| Type | Home audio micro system |
| Farve på produkt | Sort, Sølv |
| Optisk disk-afspiller | Ja |
| Kassetteafspiller | Nej |
| Disk - indlæsningstype | Front |
| Motoriseret diskindlæser | Ja |
| Højttaler, type | 3-vejs |
| Antal højttalere | 2 |
| Udgangseffekt (RMS) | 120 W |
| Woofer diameter | 14 cm |
| Diskant diameter | 1,9 cm |
| Impedens | 3 ohm (Ω) |
| klirfaktor (THD) | 10% |
| Basrefleks | Ja |
| Karaoke | Nej |
| Understøttede radiobånd | AM,FM |
| RDS Tuner inkluderet | Ja |
| Tuner-type | Digital |
| Preset stationer, antal | 45 |
| Skærmtype | FLT |
| Wi-Fi | Nej |
| USB-port | Ja |
| Kompatibel med Apple dockingstation | iPhone,iPod |
| Hovedtelefoner, forbindelse | 3,5 mm |
| USB 2.0 porte, antal | 1 |
| Hovedtelefon udgange | 1 |
| AUX indgang | Ja |
| MP3 afspilning | Ja |
| Indbygget kortlæser | Nej |
| Afspilning af diskformater | CD-lyd |
| Understøttede lydformater | MP3 |
| Videooptagelse | Nej |
| USB direkte afspilning | Ja |
| Equalizer | Ja |
| Equalizer bånd antal | 5 |
| Bas indstillinger | Ja |
| Diskant indstillinger | Ja |
| Strømkilde | Strøm |
| Strømforbrug (normal) | 40 W |
| Strømforbrug (standby) | 0,4 W |
| AC frekvens | 50 |
| AC indgangsspænding | 220-240 |
| Bredde | 210 mm |
| Dybde | 266 mm |
| Højde | 120 mm |
| Vægt | 3 kg |
| Fjernbetjening | Ja |
| Højttaler bredde | 16,1 cm |
| Højttaler dybde | 26,2 cm |
| Højttaler højde | 23,8 cm |
| Automatisk digital indstilling | Ja |
