Name: SAMSUNG - 32inch FullHD 16:9 QM32R-B
Brand: SAMSUNG
SKU: 1002361334
Price: 2835.00 DKK
Availability: InStock

SAMSUNG 32inch FullHD 16:9 QM32R-B

Varenr.:

LH32QMRBBGCXEN

EAN:

8806092994584

Skærmstørrelse 32"
Opløsning 1920 x 1080
HD Fuld HD
USB-C 0
DVI 0
DP 1
HDMI 2
Berøringsskærm Nej
Højttalere Ja
Skærmform Flad
Højdejustering Nej
Drejbar Nej
Pivot Ja
Anvendelsesområde Digital signage

Samsung QM32R-B Series

Time to upscale your display
Samsung’s new QMR-B series displays cut through the clutter to deliver best-in-class UHD resolution as well as intelligent UHD upscaling and rich flawless colors with Dynamic Crystal Color all in a slim design.

Incredible 4K picture quality
Empower your customers to experience pure visual innovation with lifelike images in sharper picture quality than ever before.

Intelligent UHD upscaling
Crystal Processor 4K
QMR-B’s UHD upscaling feature is made possible by Samsung’s Crystal Processor 4K. This innovative technology allows the display to play lower resolution content at UHD-level quality while also improving the visibility of on-screen text and images.

Marvel at the lifelike Color expression
Dynamic Crystal Display
Immerse your customers in every picture with a wider range of color. Dynamic Crystal Display creates lifelike images allowing the viewer to see even the subtlest details.

Perfect view with non-glare display
The QMR-B series features reliable, non-glare panels that provide better visibility from all angles, anytime of day allowing businesses to deliver accurate information 24/7 in locations where clear and accurate information is crucial such as airports and commuter stations.

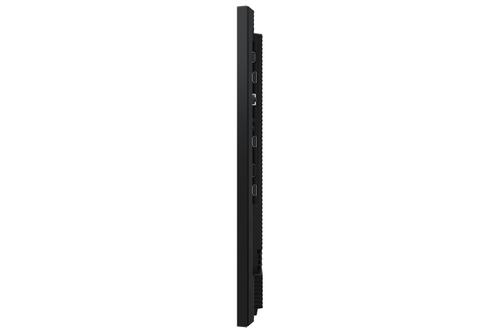

Slim and symmetrical design
Slim, symmetrical design that will stand the test of time and ensure the QMR-B series blends seamlessly into any environment, with simple installation to get your display up and running as soon as possible.

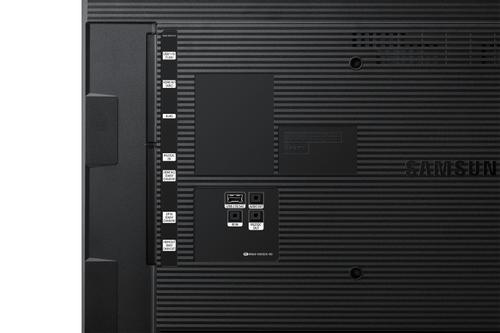

Clean cable management
With QMR-B's new cable guide feature, retailers are able to tuck away messy cables from view. This allows for a clean and visually-appealing shopping experience for customers, even when the back of the display is visible.

Powerful, all-in-one solution
SSSP is an all-in-one solution that simplifies installation and maintenance. With Tizen 4.0, businesses can enjoy easy development, reinforced capability with multiple web formats and standards and secured protection.

Samsung Workspace secured by Knox
With security provided by Knox, the displays feature Samsung Workspace which supports wireless cloud service access and control of a PC without needing a physical connection. Samsung Workspace simplifies meeting spaces while also improving security.

Industry standard certified
The QMR-B series guarantees dependable functionality and is environmentally sustainable. Electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation, the displays are also registered by EPEAT, the global ecolabel for IT.

Specifications:

Panel

Diagonal Size: 32"
Type: Edge LED BLU
Resolution: 1920*1080 (Full HD)
Pixel Pitch(mm): 0.360(H) x0.360(V)
Active Display Area(mm): 698.4(H) x 392.85(V)
Brightness(Typ.): 400 nit
Contrast Ratio: 5000:1
Viewing Angle(H/V): 178/178
Response Time(G-to-G): 8ms(Typ.)
Display Colors: 16.7M(True Display)1.07B(Ditherd 10bit)
Color Gamut: 72%
Operation Hour: 24/7
Haze: 2%

Display

Dynamic C/R: MEGA
H-Scanning Frequency: 30 ~ 81kHZ
V-Scanning Frequency: 48 ~ 75HZ
Maximum Pixel Frequency: 594MHz

Sound

Speaker Type: Built in Speaker(10W + 10W)

Connectivity Input

RGB: Display Port 1.2 (1)
Video: HDMI 2.0 (2)
HDCP: HDCP2.2
Audio: Stereo Mini Jack, HDMI/Audio(Common)
USB: USB 2.0 x 2

Output

Audio: Stereo mini Jack

External Control: RS232C(in/out) thru stereo jack, RJ45
External Sensor: IR

Power

Type: Internal
Power Supply: AC 100 - 240 V, 50/60 Hz

Power Consumption

Max[W/h]: 72.0
Typical[W/h]: 44.0
Rating[W/h]: 65.0
BTU(Max): 245.7
Sleep mode: 0.5

Mechanical Specification Dimension (mm)

Set: 725.1 x 419.6 x 34.6
Package: 812 x 513 x 120

Weight (kg)

Set: 5.7
Package: 8.0

VESA Mount (mm): 200 X 200
Stand Type: Foot Stand (Optional)
Bezel Width (mm): 8.8mm(U/L/R/B)

Operation

Operating Temperature: 0 ℃ ~ 40 ℃
Humidity: 10.0 % ~ 80.0 %

Feature

Key Features: FHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0
Orientation: Landscape / Portrait
Remote Control: N/A

Special Features: H/W : Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x Rating, Wi-Fi S/W : Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)

Internal Player

Processor: Cortex A72 1.7GHz Quad-Core CPU
On-Chip Cache Memory: L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB
Clock Speed: 1.7GHz
Main Memory Interface: 2.5GB LPDDR4 1.5GHz 64bit

Graphics: Graphic resolution : 1920x1080 Output resolution : 1920x1080 (Scale up from graphic processing result.)
Storage (FDM): 8GB (3.88GB Occupied by O/S, 4.12GB Available)
Multimedia: *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG
IO Ports: USB 2.0

Operating System: Tizen 4.0 (VDLinux)

Certification

Safety: 60950-1
EMC: Class B(TBD)
Security: 802.1x(WPA2 Enterprise) : EAP-TLS, EAP-TTLS, EAP-PEAP

Accessory

Included: Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries

Optional

Stand: STN-L3240E
Mount: WMN4070SE (Land Only) WMN750ME
Specialty: CML400XK

Media Player

Media Player: N/A

Display
Skærm diagonal	81,3 cm (32")
Skærmteknologi	LCD
Paneltype	VA
LED-baggrundsbelysning	Ja
Skærmopløsning	1920 x 1080 pixel
Skærmens lysstyrke	400 cd/m²
HD-type	Fuld HD
Berøringsskærm	Nej
Naturligt aspektforhold	16:9
Responstid	8 ms
Kontrastforhold (typisk)	5000:1
Dynamisk kontrastforhold marketing navn	Mega kontrast
Synsvinkel, horisontal	178°
Synsvinkel, vertikal	178°
Pixel pitch	0,36375 x 0,36375 mm
Skærm diagonal (metrisk)	81 cm
Horisontal scanningsområde	30 - 81 kHz
Vertikalt scanningsområde	48 - 75 Hz
Tågehastighed	2%
Pixel-frekvens (maks.)	594 MHz
Farveområde	72%
Porte & Grænseflader
Antal HDMI-porte	2
HDMI-version	2.0
Antal HDMI-indgangsporte	2
DVI-port	Nej
Antal DisplayPorts	1
DisplayPorts indgang	1
DisplayPort-version	1.2
USB-port	Ja
Antal USB-porte	2
Ethernet LAN	Ja
Wi-Fi	Ja
Lyd (L, R) udgang	1
RS-232 grænseflade	Ja
Infrarød dataport	Ja
Design
Produktdesign	Digital fladpaneldisplay
Produktfarve	Sort
Understøttet placering	Indendørs
Skærm form	Flad
VESA montering	Ja
Panel montering grænseflade	200 x 200 mm
Facet bredde (bund)	8,8 mm
Facet bredde (side)	8,8 mm
Facet bredde (øverste)	8,8 mm
Farve på ramme	Charcoal Black
Præstation
Formål	Universel
HDCP	Ja
HDCP-version	2.2
Strømstyring
Strømforbrug (typisk)	72 W
Strømforbrug (dvale)	0,5 W
Vekselstrømsindgangsspænding	100 - 240 V
Vekselstrømsindgangsfrekvens	50/60 Hz
Computersystem
Operativsystem installeret	Tizen 4.0
Vægt & størrelser
Skærmbredde	725,1 mm
Skærm, dybde	34,6 mm
Skærm, højde	419,6 mm
Skærm, vægt	5,7 kg
Emballeringsdata
Pakkebredde	812 mm
Pakkedybde	120 mm
Pakkehøjde	513 mm
Pakkevægt	7,6 kg
Driftsbetingelser
Driftstemperatur (T-T)	0 - 40 °C
Relativ luftfugtighed ved drift (H-H)	10 - 80%
Godkendelser
Certificering	Class B 60950-1, 62368-1
Andre funktioner
Flashhukommelse	8000 MB
Optional features	WMN4070SG, WMN750ME STN-L3240F

SAMSUNG 32inch FullHD 16:9 QM32R-B
