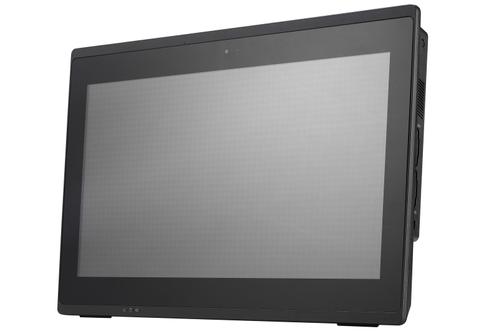

SHUTTLE All-In-One Barebone P52U3,

XPC all-in-one P52U3

• Passive heatpipe cooling, absolutely no fan noise
• Perfect for noise-sensitive environments
• Fanless, dust-free and thus virtually maintenance-free

• This device is approved for 24/7 permanent operation.
• Requirements:
  • Free circulation of air amongst the PC must be guaranteed.
  • Ventilation holes must be kept clear.
  • If a hard disk is installed, this must also be approved
• for permanent operation by its manufacturer.

• The front panel is dust-protected and protected from
• splashing of water according to protection class IP54.

• Colour: black
• Dimensions: 393.6 x 272.5 x 39.8 mm (W x H x D)
• 100 mm VESA mountable
• Hole for Kensington lock
• Weight: 3.25 kg net, 4.5 kg gross

• This system comes without operating system.
• It is compatible with:
  • Windows 11 - 64-bit
  • Windows 10 - 64-bit
  • Linux - 64-bit

• Touchscreen function supports fingertip input
• Capacitive Touch Panel with 10-point multi-touch
• Supports touch input with gloves made of PVC, cotton, cotton/linen - max. 0.4 mm thick
• Stylus pen not supported

• 39.6 cm / 15.6" LC display, IPS technology
• Ratio: 16:9 wide-screen panel
• Native resolution: 1920 x 1080 = 2 Megapixel (Full HD / 1080p)
• Brightness: 250 cd/sqm

• Model: Intel Core i3-10110U (ULV)
• System-on-a-chip architecture (SoC) with integrated memory and graphics controller
• FCBGA1528 package - directly soldered onto the mainboard
• Code name: Comet Lake U (10th Generation Intel Core)
• Cores / Threads: 2 / 4
• Base frequency: 2.1 GHz
• Max. Turbo frequency: 4.1 GHz
• Intel Smart Cache: 4 MB
• TDP wattage: 15 W maximum
• Manufacturing process: 14nm
• Maximum Tjunction Temperature: 100 °C
• Supports 64-bit, VT-x (EPT), VT-d, Enhanced SpeedStep, NX bit, AES-NI, SSE 4.1/4.2

• Intel UHD Graphics 620
• GPU clock frequency: 300~1000 MHz
• Execution Units (EUs): 23
• Supports DirectX 12, OpenGL 4.5
• Supports full H264, H265 8/10 bit, VP8/9, VC-1, AVC hardware decoding
• Supports Quick Sync Video and Clear Video HD technology

• Two video ports support two additional independent screens:
  • 1) HDMI 1.4b supports 1920 x 1080 @ 60 Hz or 3840 x 2160 @ 30 Hz
  • 2) VGA / D-Sub analog video supports 1920 x 1080 @ 60 Hz
• Multi-Monitoring modes as follow:
• Clone mode: All displays show the same content at 1920 x 1080.
• Extended mode: All displays show different content.

• AMI BIOS in 16 MByte EEPROM with SPI interface
• Supports Power-on-after-power-fail / always on
• Supports Wake-on-LAN (WOL) from S3, S4, S5 ACPI states
• Supports hardware monitoring and Watchdog function
• Supports Firmware TPM v2.0 function

• 2x SO-DIMM slot with 260 pins
• Supports DDR4-2666 (PC4-21300) SDRAM at 1.2 V
• Also compatible with DDR4-3200 memory modules
• Supports Dual Channel mode
• Supports a maximum of 32 GB per DIMM, maximum capacity: 64 GB
• Supports two unbuffered DIMM modules (no ECC or registered)

• Supports one SATA hard disk or one SATA SSD drive in 6.35 cm / 2.5" format
• The SATA 3.0 interface supports up to 600 MB/s of data transfer speed (6 Gbit/s)
• Supports one drive with up to 9.5 mm in height
• SATA cable pre-installed

• The M.2 2280 BM slot provides the following interfaces:
  • PCI-Express Gen. 2.0 X4
  • SATA v3.0 (max. 6 Gbps)
• It supports M.2 cards with a width of 22 mm and a length of 80mm.
• Supports M.2 SATA SSDs (with B+M key) and M.2 PCIe NVMe-SSDs (with M key)

• Integrated card reader supports SD, SDHC and SDXC memory flash cards

• Integrated Full-HD 2.0 Megapixel (1920 x 1080) camera

• Front panel with integrated Electret Condenser Microphone and
• 2x 2 W speakers

• C-Media CM6542 (USB) or Realtek ALC269 (HD Audio)
• Two analog audio connectors (3.5 mm) on the bottom side:
  • 1) Line-out (head-phones)
  • 2) Microphone input
• Digital Audio is supported via HDMI.

• Intel 219 Ethernet Controller
• Supports 10 / 100 / 1.000 MBit/s operation
• Supports WAKE ON LAN (WOL) from S3, S4 modes
• Supports network boot by Preboot eXecution Environment (PXE)

• M.2-2230E slot supports USB2.0, PCIe X1 and CNVi
• suitable for commonly available WLAN modules in M.2 format
• Two internal WLAN antennas for 2.4/5 GHz are already pre-installed.
• The chassis has two 7-mm perforations for optional external antennas.

• Power LED (blue)
• Hard disk LED (orange)
• Battery LED (red) - reserved, no function

• Power button
• 2x USB 3.2 Gen. 1 (max. 5 Gb/s, blue)
• SD card reader
• Hole with Clear CMOS button

• Optional: 2x COM/serial (D-Sub, RS232)
• Hole for the Kensington Lock

• HDMI 1.4b (supports digital video and digital audio)
• VGA connector (D-Sub 15 pol., analog video)
• 2x USB 3.2 Gen. 1 ( max. 5 Gb/s, blue)
• 2x USB 2.0
• 2x COM/serial (D-Sub, RS232)
• Gigabit Network (LAN, RJ45)
• Audio Line-out / headphones (3.5 mm jack)
• Microphone input (3.5 mm jack)
• DC input for external power adapter (5.5 / 2.5 mm)
• 2x Perforation for optional WLAN/LTE antennas (diameter: 7 mm)

• Internal USB 2.0 type A connector for a USB stick
• Serial ATA (6 Gbps) data/power combo connector
• 3x USB 2.0 header (all occupied)
• Microphone connector (2-pin, occupied)
• Speakers connector (4-pin, occupied)
• eDP connector (Embedded DisplayPort) - occupied by the display
• LPC connector (occupied)
• I2C connector for optional NFC accessory
• CMOS battery connector (2-pin occupied)

• The chassis features two perforated 7 mm holes
• for optional antennas mounted with an (RP-)SMA connector
• for wireless network such as WLAN or WWAN (e.g. LTE)

• External 65 W power adapter (fanless)
• Input: 100~240 V AC, 50/60 Hz, max. 1.6 A
• Output: 19 V DC, max. 3.42 A, max. 65 W

• DC Input Connector: 5.5 / 2.5 mm (outer/inner diameter)
• The DC-input of the computer supports an external
• power source with either 12V ±5 % or 19V ± 5%.

• Quick Guide
• Driver DVD
• 2x bracket to install a 2.5" drive
• External Power Adapter (65W / 19V)
• Power cord (2 pins)
• Screws (2x for M.2 slots, 8x for 2.5" bay)

• 1) COM port adapter PCP21 or 2x PCP11
  provides two more serial COM ports on the right side
• 2) M.2 WLAN module with two external Antennas:
  WLN-M (802.11ac) or WLN-M1 (802.11at)
• Two internal WLAN antennas are already pre-installed and can be used instead of the external antennas.

• Operating temperature: 0~40 °C
• Humidity: 10~90 %

• EMI: CE, FCC, RCM, VCCI, BSMI
• Safety: CB 60950/62368, cTUVus, BSMI
• Other compliances: RoHS, ErP Lot3, Energy Star
• This device is classed as a technical information equipment (ITE) in class B and is intended for use in living room and office. The CE-mark approves the conformity by the EU directives:
  • (1) 2014/30/EU relating to electromagnetic compatibility (EMC),
  • (2) 2014/35/EU relating to Electrical Equipment designed for use within certain voltage limits (LVD),
  • (3) 2009/125/EU relating to ecodesign requirements for energy-related products (ErP)
