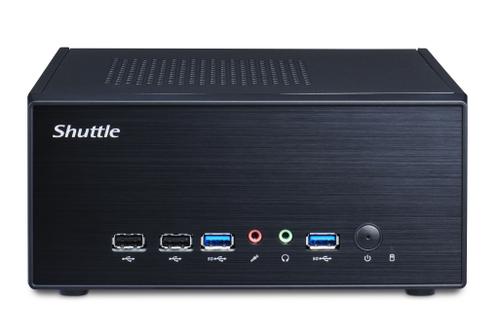

SHUTTLE XH510G2 XPC Barebone PC

XPC slim XH510G2

• For Intel processors of the 10th & 11th generation (LGA1200)
• 1× Full-size PCIe slot x16-4.0, 1× PCIe slot x1-3.0
• Supports dual-slot graphics cards
• Up to 64 GB of DDR4 memory
• Compact steel chassis (25 × 20 × 9.5 cm LWH)
• 1× HDMI 2.0a, 1× DisplayPort 1.4
• 1× M.2-2230, 4× USB 3.2 Gen 1 (5 Gbit), 4× USB 2.0
• 2× M.2-2280 for NVMe SSDs, 1× 2.5" hard disk/SSD
• Gigabit Ethernet
• Always-on function, remote power-on connector
• Wall/VESA mount included

• Slim X-type chassis, colour: black
• Dimensions: 250 x 200 x 95 mm (LWH), Volume: ca. 4.7 litres
• Weight: 2.98 kg net, 3.49 kg gross
• Open front - no concealed front panel connectors
• Hole for Kensington Lock at the backpanel

• horizontal on its feet
• vertical with the supplied VESA mount bracket

• External 180 W power adapter (fanless)
• Input: 100~240 V AC, 50~60 Hz, max. 2.5 A
• Output: 19.5 V DC, max. 9.23 A, max. 180 W output wattage
• AC Connector with protective-earth contacts, cable length: 1.7 m
• DC Connector: 5.5 / 2.5 mm (outer/inner diameter)
• Dimensions: ca. 167 x 82 x 25.5 mm = 350 ml

• This system comes without an operating system.
• It is compatible with Windows 10, Windows 11 and Linux (64-bit)

• Processor Socket LGA1200
• Supports Intel Core i9 / i7 / i5 / i3, Pentium Gold and Celeron processors
• Supports 10th and 11th generation Intel Core processors, codenamed "Comet Lake-S" and "Rocket Lake-S" in 14 nm process technology
• Maximum supported processor power consumption (TDP) = 65 W
• Up to 10 CPU cores, 20 threads and 20 MB of L3 cache
• Does not support the unlock-function of Intel K-Series processors.
• The processor integrates PCI-Express, RAM controller and the graphics engine
  (Performance features depend on processor type)
• Not compatible with older Socket LGA 1151(v2) processors.

• Processor cooling with heatpipe technology and two fans (60 mm)

• Mainboard in a Shuttle form factor proprietary design for the XPC XH510G2
• Chipset/Southbridge: Intel® H510
• Passive chipset cooling with heat sink
• The Northbridge is integrated in the processor.
• Solid Capacitors for sensitive areas provide excellent heat resistance for enhanced system durability

• AMI BIOS, SPI Interface, 16 MB Flash-EEPROM
• Supports Hardware Monitoring and Watchdog functionality
• Supports Firmware-TPM (fTPM) v2.0
• Supports boot up from external USB flash memory
• Supports Unified Extensible Firmware Interface (UEFI)
• Supports power on after power failure

• 2x SO-DIMM slot with 260 pins
• The maximum DDR4 clock frequency depends on the processor type used:
  • Gen. 11 "Rocket Lake" supports DDR4-3200 (PC4-25600U)
  • Gen. 10 "Comet Lake" Core i7/i9 supports DDR4-2933 (PC4-23433U)
  • other Gen. 10 "Comet Lake" support DDR4-2666 (PC4-21300U)
• Supports Dual Channel mode
• Supports a maximum of 32 GB per DIMM, maximum total size: 64 GB
• Supports two unbuffered DIMM modules (no ECC or registered)

• The features of the integrated Intel UHD graphics function
• depend on the processor type used.
• The PC features two video outputs:
  • HDMI v2.0a (only HDMI v1.4b with Gen. 10 "Comet Lake" processors)
  • DisplayPort v1.4
• Both outputs support displays with 4K Ultra HD resolution at 3840 x 2160 with 60 Hz refresh rate (2160p 60) and support multi-channel digital audio over the same cable (HDMI 1.4b support Ultra HD with 30 Hz only).
• Supports two independent displays with the integrated graphics function
• Optional analog D-Sub/VGA video output

• The pre-installed 90° Riser Card provides two PCI-Express expansion slots:
• 1x PCI-Express X16 v4.0 slot
  (only PCIe v3.0 with Gen. 10 "Comet Lake" processors)
• 1x PCI-Express X1 v3.0 slot
• Supports dual-slot (double-width) graphics cards (occupies the second PCI-Express slot)
• The used PCIe X16 expansion card must meet the following conditions:
  1. Maximum dimensions: 208 mm x 120 mm x 45 mm
  2. Maximum power consumption: 75 W (optional up to 225 W )
• For special purposes, the mainboard provides a 5V auxiliary voltage (max. 2 A) via 4-pin Molex connector.

• Audio Realtek® ALC662/888/897 High-Definition Audio
• Two analog audio connectors (3.5 mm) at the front panel:
  1. Microphone input
  2. Headphones output (Line out)
• Digital 7.1 audio output: possible via the HDMI and DisplayPort connectors

• Intel i219LM network controller
• Supports 10 / 100 / 1.000 MBit/s operation
• Supports WAKE ON LAN (WOL)
• Supports network boot by Preboot eXecution Environment (PXE)

• This system features one 2.5" drive bay which is accessible from the bottom of the housing.
• It supports one 2.5" / 6.35 cm hard disk or SSD with max. 9.5 mm height.
• The system includes a pre-installed data/power cable.
• The connector supports SATA III with max. 6 Gbps.

• This system features two M.2-2280M slots.
• Both M.2 slots support M.2 cards with key M or key B+M.
• Both M.2 slots support SSD cards with SATA interface.
• One of the slots also supports SSDs with PCI Express interface and NVMe support.
• M.2-Slot 1:
  • is located inside the housing
  • supports M.2 cards with a length of 80, 60 or 80 mm (type 2242, 2260, 2280)
  • supports SATA v3.0 (6 Gbps) or PCIe v3.0 X4 (NVMe)
• M.2-Slot 2:
  • is accessible from the bottom of the housing
  • supports M.2 cards with a length of 80 mm (type 2280)
  • supports SATA v3.0 (6 Gbps)

• The M.2 2230E slot has the following interfaces:
  • PCI-Express v2.0 X1
  • USB 2.0
• It supports M.2 cards with a width of 22 mm and a length of 30 mm. This slot is intended for Wireless LAN (Wifi) cards.

• 1x Microphone input (3.5 mm)
• 1x Headphones output (3.5 mm, line out)
• 2x USB 3.2 Gen 1 (blue, max. 5 Gbps)
• 2x USB 2.0
• 1x Power button with Power LED (blue)
• 1x HDD LED (yellow)

• 1x HDMI 2.0a supports screw lock
  (supports only HDMI v1.4b with Gen. 10 "Comet Lake" processors)
• 1x DisplayPort 1.4
• 2x USB 3.2 Gen 1 (blue, max. 5 Gbps)
• 2x USB 2.0
• 1x GigaBit LAN (RJ45, Intel i219LM)
• 1x DC-input connector for external power adapter (supports 19.5 V)
• 1x 4-pin connector (2.54 mm pitch) supports:
  • external power on button
  • Clear CMOS function
  • +5V DC voltage for external components
• 1x perforation for optional VGA or COM port
• 2x perforation for optional Wireless LAN antennas
• 1x hole for Kensington Lock

• 2-pin onboard ATX connector with 5V (max. 2 A) output voltage with 4-pin Molex adapter cable
• Power-on-after-power-fail (hardware solution by jumper)
• RS232 COM port (2x5-pin header, 2 mm pitch)
• Front connector for power button, LEDs, USBs, audio ports
• 4-pin fan connectors (occupied by the CPU cooling system)
• 4-pin USB 2.0 connector (for the optional WWN03 accessory)
• 2x 5-pin debug port

• Multi-language installation guide (EN, DE, FR, ES, JP, KR, SC, TC)
• Driver DVD
• Bracket for one 2.5" drive
• Four screws M3 x 4 mm (to mount a 2.5" storage device into the bay/bracket)
• Three screws M2 x 5 mm (to mount the drive bracket)
• VESA mount brackets (2 parts, metal) supports 75x75 and 100x100 mm VESA standard
• Four screws M3 x 5 mm (screws together VESA mount and PC)
• Four screws M4 x 10 mm (to affix VESA mount on the PC)
• Three screws M3 x 5 mm (silver colour, to mount up to three M.2 cards)
• Internal adapter cable with 4-pin Molex connector for 5V/2A auxiliary voltage
• External power adapter with 1.7 m power cord with earthing contact
• Protector cap for the CPU socket (do not use if heat-pipe or fan is mounted)
• CPU heatpipe cooling system with heatsink compound

• WLN-M/WLN-M1: WLAN module supports WLAN and Bluetooth, with two external antennas
• WWN03: LTE adapter kit with antennas, but without LTE card
• PCP11: Backpanel COM port adapter for RS232 serial interface
• PVG01: optional D-Sub VGA video output
• CXP01: Adapter cable for external power button
• PRC01: Expansion kit to support an additional power adapter (PE90 or PE180) for more powerful graphics cards

• Operating temperature range: 0~50 °C
• Relative humidity range: 10~90 % (non-condensing)

• EMI: CE, FCC, BSMI, VCCI, RCM
• Safety: CB, cTUVus, BSMI
• Other: RoHS, Energy Star v8.0, ErP
• This device is classed as a technical information equipment (ITE) in class B and is intended for use in living room and office. The CE-mark approves the conformity by the EU directives:
  1. 2004/108/EC relating to electromagnetic compatibility (EMC),
  2. 2006/95/EC relating to Electrical Equipment designed for use within certain voltage limits (LVD),
  3. 2009/125/EC relating to ecodesign requirements for energy-related products (ErP)
