TRANSCEND Msa452T2 Msata 64 Gb Serial

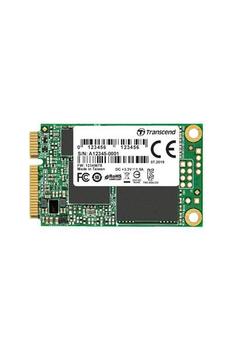

MSA452T2 mSATA SSD 64GB

• Firmware
  • Dynamic thermal throttling
  • Built-in LDPC ECC (Error Correction Code) functionality
  • Advanced Global Wear-Leveling and Block management for reliability
  • Advanced Garbage Collection
  • Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
  • TRIM command for better performance
  • NCQ command for better performance
  • Security Command
  • Full drive encryption with Advanced Encryption Standard (AES) (optional)
  • Power-saving DevSleep (Device Sleep) mode
• Hardware
  • Compliant with RoHS 2.0 standards
  • Compliant with JEDEC MO-300A
  • DDR3 DRAM Cache embedded
  • Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
  • Key components fortified by default with Corner Bond technology
  • 30µ" PCB gold finger

• Dimensions 50.8 mm x 29.85 mm x 4.85 mm (2" x 2.18" x 0.19")
• Weight 8 g (0.28 oz)
• mSATA Type MO-300
• Pin Count 52 pin
• Form Factor mSATA

• Bus Interface SATA III 6Gb/s

• Flash Type 3D NAND flash
• Capacity 64GB

• Operating Voltage 3.3V±5%
• Operating Temperature -20°C (-4°F) ~ 75°C (167°F)
• Storage Temperature -55°C (-67°F) ~ 85°C (185°F)
• Humidity 5% ~ 95%
• Shock 1500 G, 0.5 ms, 3 axis
• Vibration (Operating) 20 G (peak-to-peak), 7 Hz ~ 2,000 Hz (frequency)

• Power Consumption (Operation) 2.64 watt(s)
• Power Consumption (Sleep) 0.4 watt(s)

• Sequential Read/Write (CrystalDiskMark) Read: up to 550 MB/s, Write: up to 520 MB/s
• 4K Random Read/Write (IOmeter) Read: up to 95,000 IOPS, Write: up to 85,000 IOPS
• Mean Time Between Failures (MTBF) 3,000,000 hour(s)
• Terabytes Written (TBW) up to 1,760 TBW
• Drive Writes Per Day (DWPD) 1.61 (3 yrs)

• Certificate CE/FCC/BSMI
• Warranty Three-year Limited Warranty
